Handwheel Pulse Encoder 100PPR 4 pin 5V

type: Components
Vendor: Generic

Description:

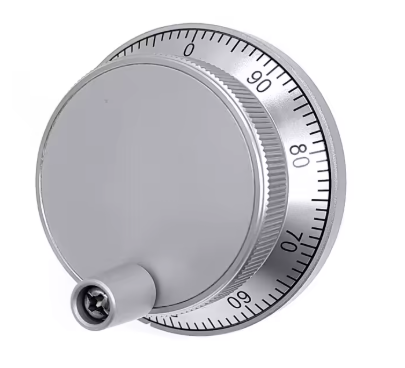

This pulse encoder is used to manually jog a CNC machine at different rates.  This is the encoder used on our handwheel encoder.

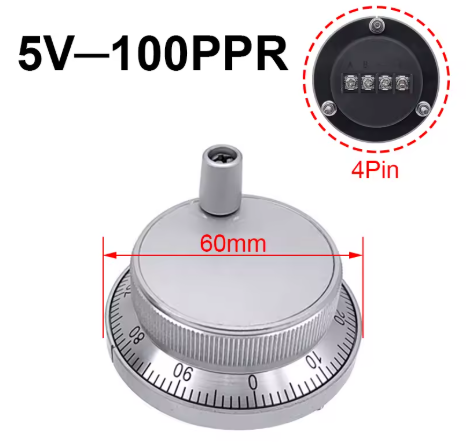

Features:

  • 100 Pulses Per Revolution (PPR)
  • 60mm diameter
  • 5V operation

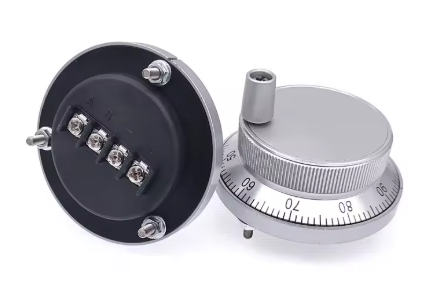

  • 4 pin (GND, 5V, A, B)

Please note that this is the standard version that is available everywhere on the internet.  It is quite heavy (0.2kg) and shipping to international customers may be relatively expensive.  There are also 6 pin versions available on the internet, and if you happen to have one of those, it will work in our handwheel encoder too.  Only the main 4 connections need to be made.
