Description:

This kit contains all of the essential custom Byte2Bot items needed to assemble a CNC Handwheel.  This is the perfect kit for customers who may want to save on shipping.  The plastic housing and encoder are slightly heavy, so international shipping charges may be a little expensive on the full unit.  This may also be a good option for someone inside the United States that already has an encoder or wants to purchase a different color of encoder (they come in black as well), and has a 3D printer, CNC router, or mill and wants to make their own housing.

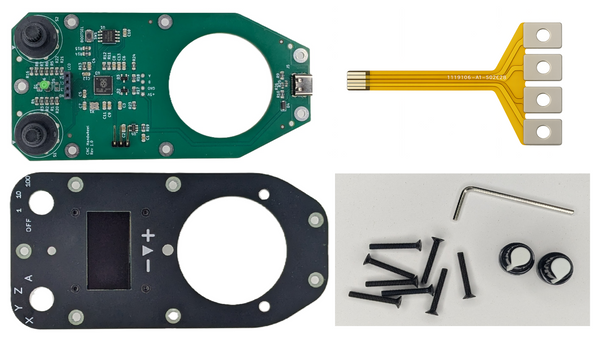

This kit includes the following components:

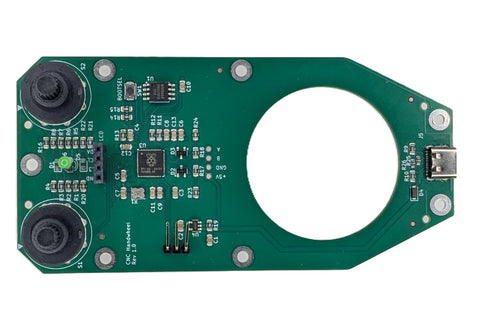

• Handwheel Main PCBA

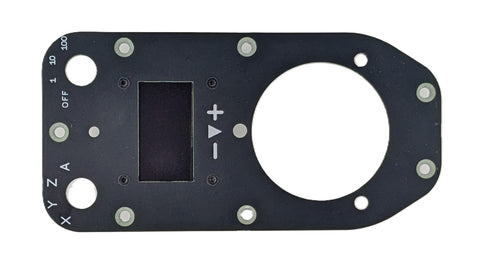

• Front plate (including the OLED screen)

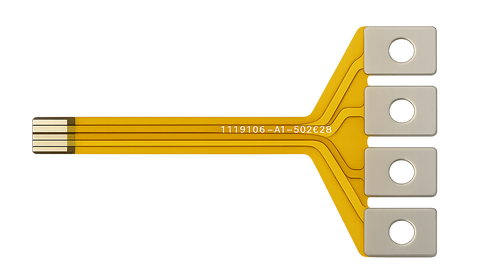

• Encoder interface Flex PCB cable.

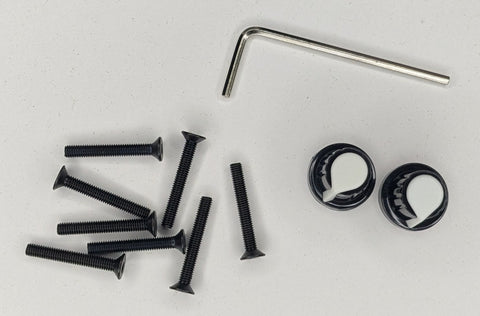

• Knobs for the two selector switches
• 22mm M3 screws and allen wrench

The items that are not included with this kit (you will need to purchase, or 3D print) are:

• 60mm 5V 100PPR Encoder (4 terminal version is preferred, 6 terminal version is also supported)
• USB-C Cable
• Housing (Edge and Bottom 3D printed or machined)

Instructions are available on our blog here:

Setup and Usage of the LinuxCNC Handwheel
